B10. Ore mine industrial elevator - Type 1
Contractor: ConfidentialPhase: Detailed design
Weight: 450 tons
Brief description: Structure is 47 meters high and 34/34 meters in plan view. The facility supports ore elevator.

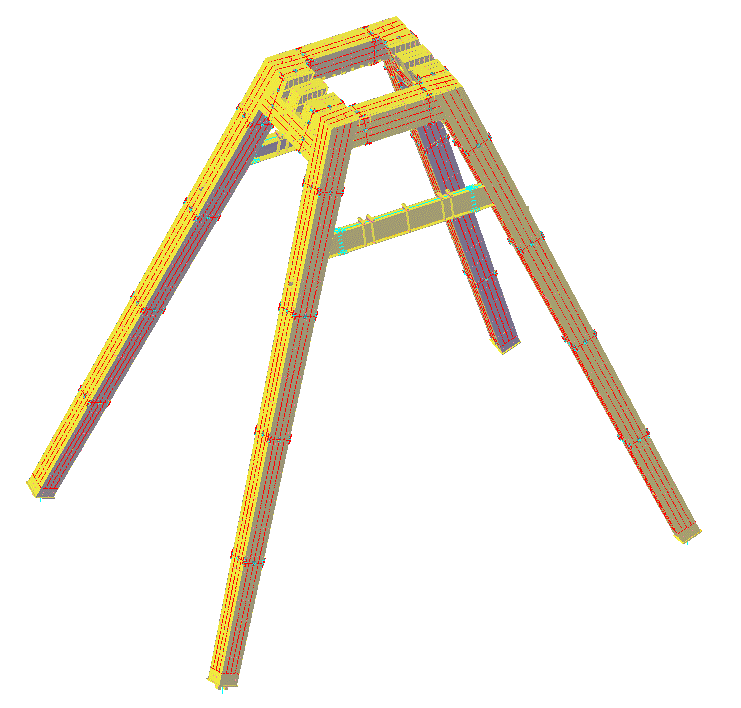

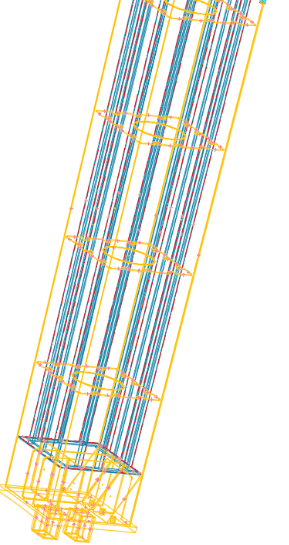

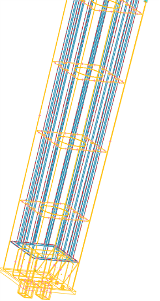

Assembly drawings of steel supporting structure.
