B13. Service platforms for enterprise in food industry

Contractor: Confidential
Phase: Detailed design
Weight: 165 tons

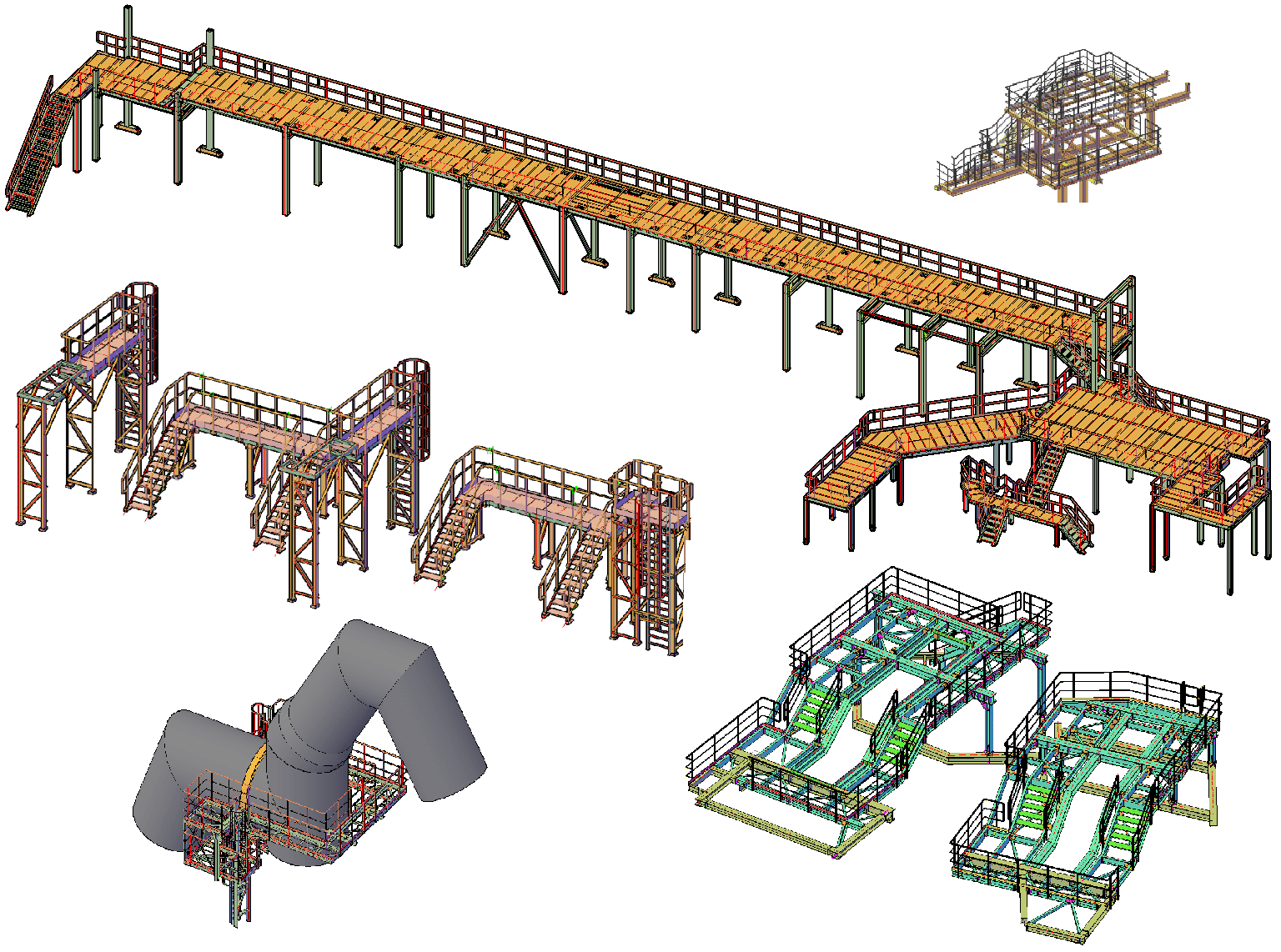

Brief description: Service platforms in different factories

Platforms type 1: Assembly drawings of service platforms ~ 350 drawings. Total weight ~ 90 tons with lite elements < 25 kg/m`.
Platforms type 2, 3, 4 and 5: Assembly drawings of service platforms supporting structure. Total weight 75 tons.

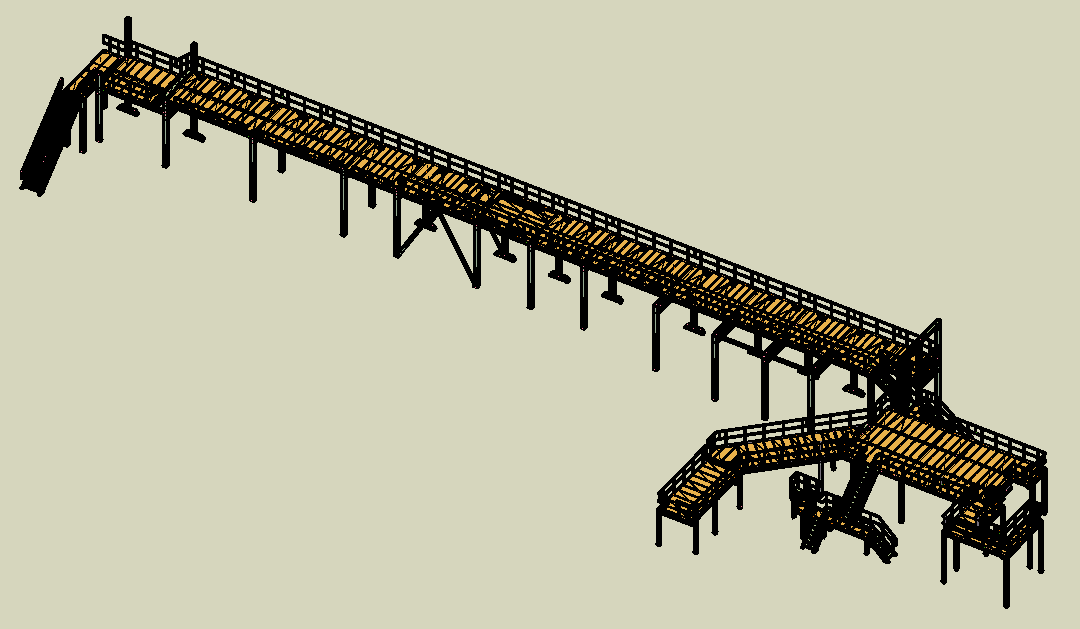

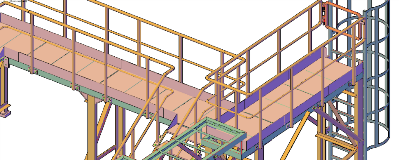

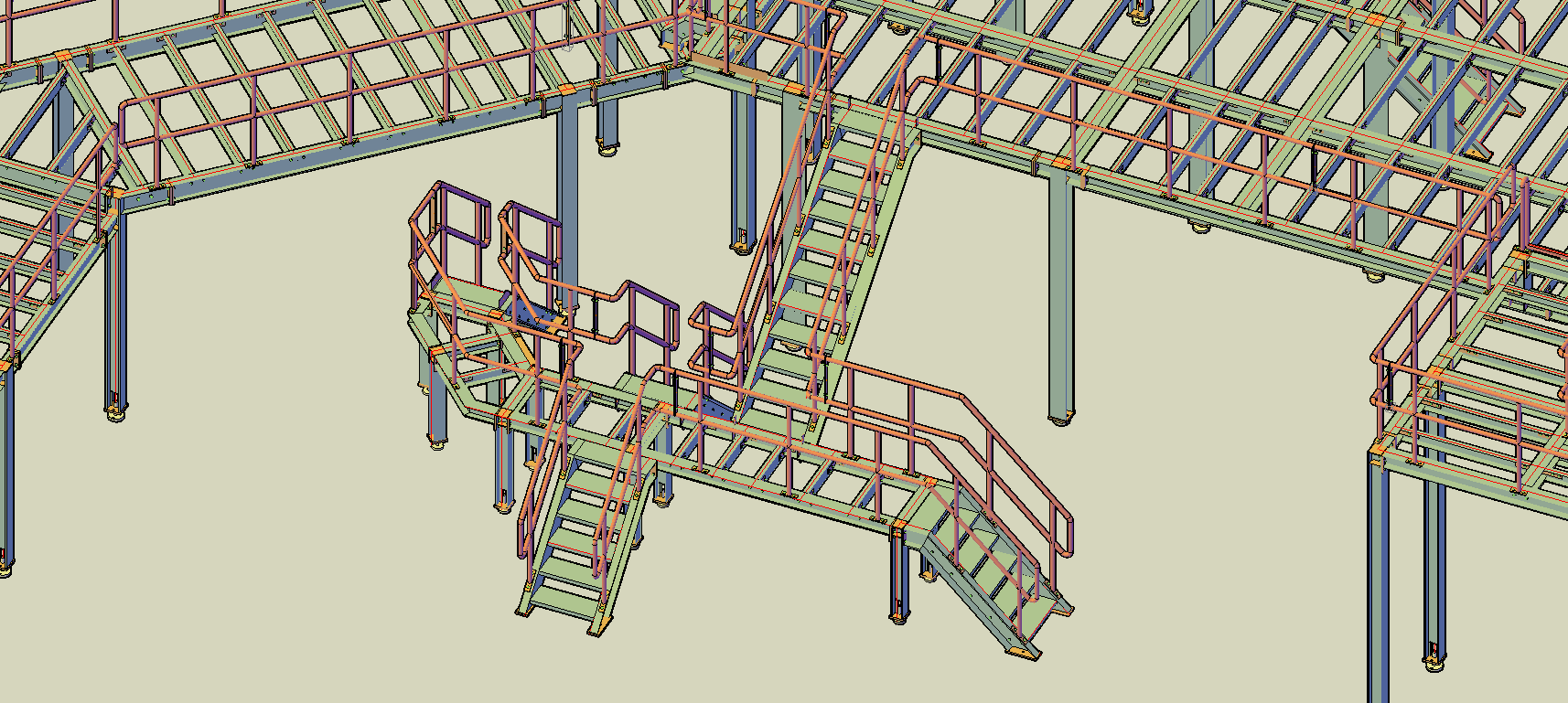

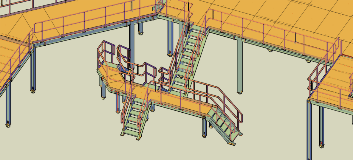

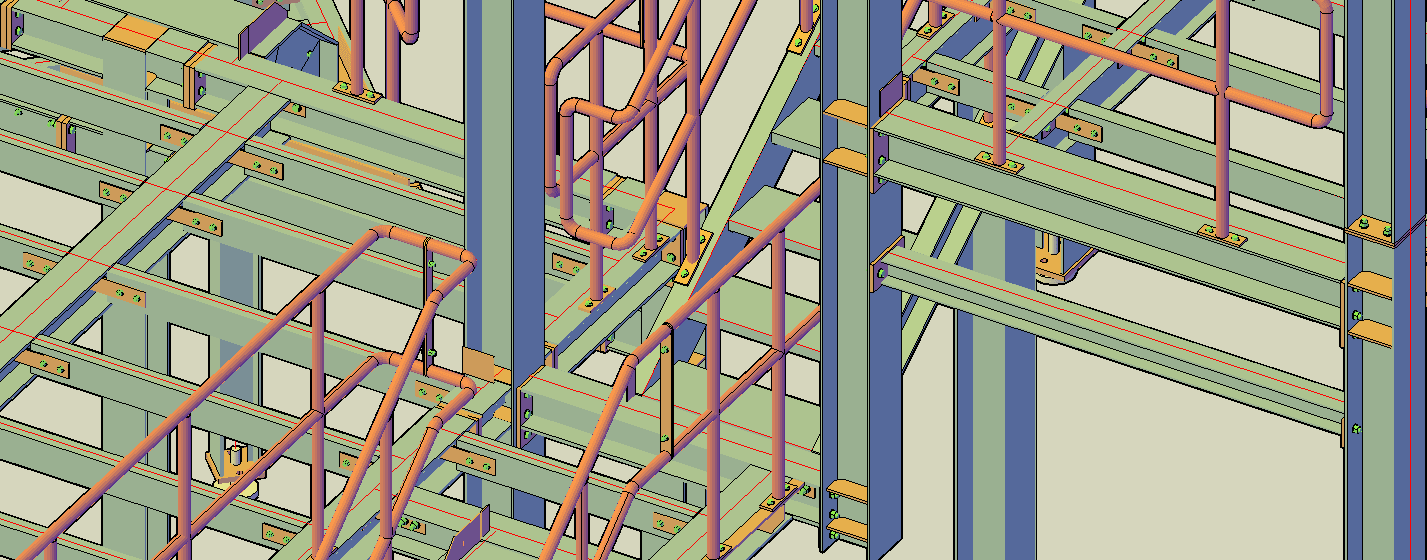

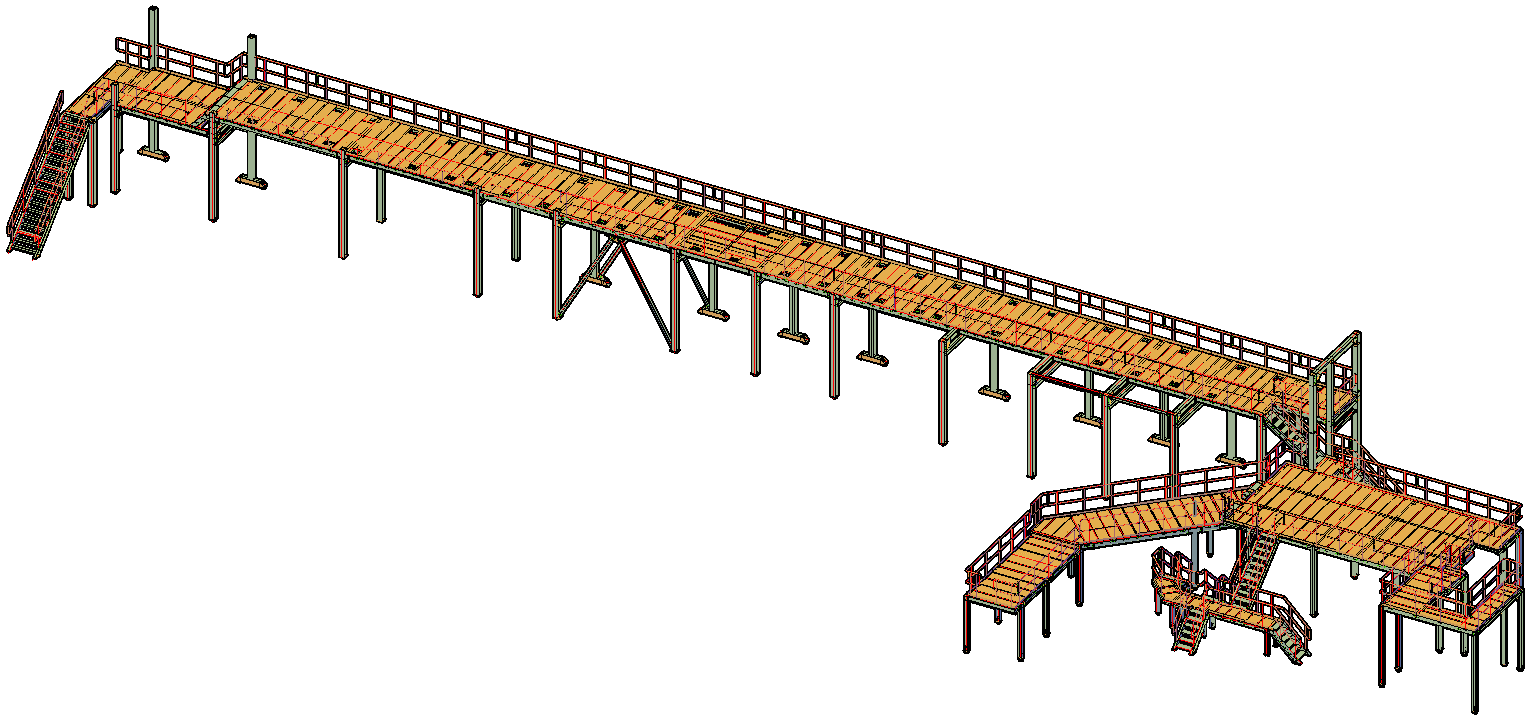

ServPlatformiV3_00 ServPlatformiV5_00 ServPlatformiV5_02 ServPlatformiV4_00 ServPlatformiV2_001 ServPlatformiV2_02 ServPlatformiV1_00 ServPlatformiV1_01 ServPlatformiV1_03 ServPlatformiV1_04 ServPlatformiV1_02
